Trace Multi-Agent LLM Pipelines with Langfuse and OpenTelemetry

What you'll build

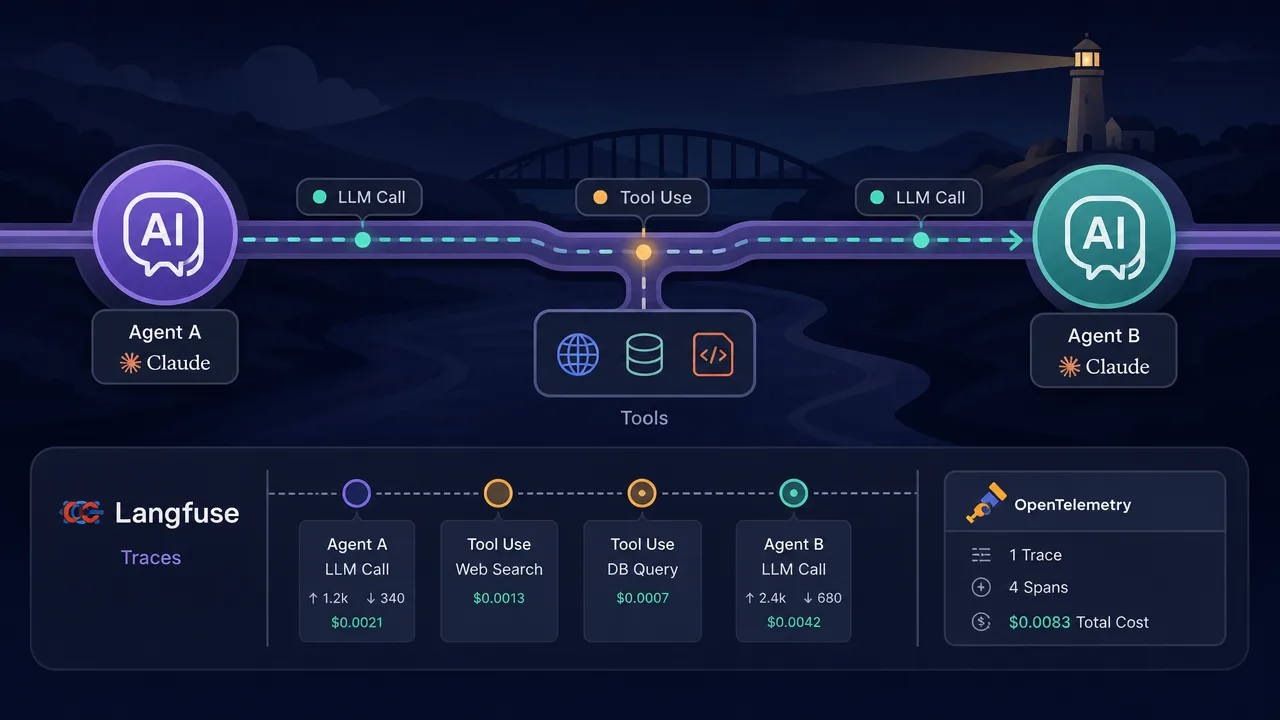

A two-agent LLM pipeline (a research agent that calls a tool, then a writer agent) fully instrumented with Langfuse over OpenTelemetry, so every LLM call, tool invocation, token count, and dollar cost shows up as a nested span in one queryable trace timeline.

Prerequisites

• Python 3.10+ (both langfuse and the instrumentor require ≥3.10). Verified with Python 3.12.
• Package versions verified for this tutorial: langfuse 4.14.4 (the v4 SDK, rewritten on OpenTelemetry — note the env var is now LANGFUSE_BASE_URL, not v3's LANGFUSE_HOST), opentelemetry-instrumentation-anthropic 0.62.3 (from OpenLLMetry), and a recent anthropic SDK (0.116+).
• A Langfuse account — the Cloud free tier works; note whether you signed up in the EU or US region. Self-hosted works identically, just point LANGFUSE_BASE_URL at your instance.
• An Anthropic API key from the Claude Console. Any OTel-instrumented provider works the same way; this tutorial uses Claude.
• OS: anything with a shell. Commands below are macOS/Linux; on Windows use set instead of export.

1. Create a Langfuse project and grab keys

Sign in at cloud.langfuse.com (or us.cloud.langfuse.com for the US region), create an organization and a project, then go to Project Settings → API Keys → Create new API keys. You get a public key (pk-lf-...) and a secret key (sk-lf-...). The secret is shown once — copy both now.

2. Install dependencies and set environment variables

python -m venv .venv && source .venv/bin/activate
pip install "langfuse>=4.14" "opentelemetry-instrumentation-anthropic>=0.62" anthropic

export LANGFUSE_PUBLIC_KEY="pk-lf-..."
export LANGFUSE_SECRET_KEY="sk-lf-..."
export LANGFUSE_BASE_URL="https://cloud.langfuse.com"   # or https://us.cloud.langfuse.com
export ANTHROPIC_API_KEY="sk-ant-..."

LANGFUSE_BASE_URL must match the region you signed up in — this is the single most common source of silent trace loss.

3. Understand the two instrumentation layers

You're wiring together two things, and it helps to know who does what:

1. AnthropicInstrumentor (OpenLLMetry) monkey-patches the Anthropic SDK and emits a standard OTel span for every API call, carrying gen_ai.* semantic-convention attributes: model, prompt, completion, and token usage.
2. The Langfuse v4 SDK is itself an OTel tracer provider. Any span emitted by any OTel instrumentation library while Langfuse is initialized lands inside your Langfuse trace tree automatically — no exporter config, no OTLP endpoint wrangling. Langfuse maps gen_ai.usage.* to token counts and multiplies them against its built-in model price list (updated daily against provider docs) to compute cost per generation.

Your own agent and tool functions become spans via Langfuse's @observe decorator, and the auto-instrumented LLM spans nest under whichever @observe function made the call.

4. Build the instrumented pipeline

Save this as pipeline.py. It's the complete, runnable file:

import os

from anthropic import Anthropic
from langfuse import get_client, observe, propagate_attributes
from opentelemetry.instrumentation.anthropic import AnthropicInstrumentor

# 1. Patch the Anthropic SDK BEFORE making any calls.
AnthropicInstrumentor().instrument()

# 2. Initialize Langfuse (reads LANGFUSE_* env vars) and fail fast on bad creds.
langfuse = get_client()
if not langfuse.auth_check():
    raise SystemExit("Langfuse rejected credentials — check keys and LANGFUSE_BASE_URL region")

client = Anthropic()
MODEL = "claude-opus-5"


def ask(system: str, prompt: str) -> str:
    # Opus 5 thinks by default and max_tokens caps thinking + answer together,
    # so leave generous headroom.
    response = client.messages.create(
        model=MODEL,
        max_tokens=16000,
        system=system,
        messages=[{"role": "user", "content": prompt}],
    )
    return "".join(b.text for b in response.content if b.type == "text")


@observe()  # tool invocation -> its own span, input/output captured
def fetch_release_notes(project: str) -> str:
    # Stub tool: swap in a real HTTP call or DB query.
    return (
        f"{project} changelog: v4 SDK is OTel-native; ingestion adds "
        "x-langfuse-ingestion-version=4; cost table now audited daily."
    )


@observe(name="research-agent")
def research(topic: str) -> str:
    notes = fetch_release_notes(topic)
    return ask(
        "You are a research agent. Extract the three most important facts as bullets.",
        f"Source material:\n{notes}",
    )


@observe(name="writer-agent")
def write_summary(facts: str) -> str:
    return ask(
        "You are a writing agent. Turn these facts into a two-sentence executive summary.",
        facts,
    )


@observe(name="research-pipeline")
def run_pipeline(topic: str) -> str:
    return write_summary(research(topic))


if __name__ == "__main__":
    # Attributes set here propagate to every span in the trace,
    # so you can filter/group traces by session or user in the UI.
    with propagate_attributes(session_id="demo-session-1", user_id="tutorial-reader"):
        print(run_pipeline("Langfuse"))
    langfuse.flush()  # spans are buffered; short scripts must flush before exit

Two details matter more than they look. AnthropicInstrumentor().instrument() runs before anything else so every SDK call is patched. And langfuse.flush() runs last — the SDK exports spans on a background thread, and a script that exits without flushing loses the trace.

Privacy note: the instrumentor records prompts and completions into span attributes by default. Set TRACELOOP_TRACE_CONTENT=false to keep payloads out of your traces.

5. Run it

python pipeline.py

The script prints a two-sentence summary, e.g.:

Langfuse's v4 SDK is now built natively on OpenTelemetry, with ingestion
tagged via x-langfuse-ingestion-version=4. Its model cost table is audited
daily, keeping per-generation pricing accurate.

Verify it works

Open your project in the Langfuse UI and click Tracing → Traces. You should see a trace named research-pipeline within a few seconds. Click it and check:

• The timeline nests correctly: research-pipeline → research-agent → (fetch_release_notes span + one anthropic.chat generation), then writer-agent → a second generation. Two generations total.
• Each generation shows claude-opus-5 as the model, the full prompt and completion, input/output token counts, latency, and a USD cost computed from Langfuse's price table.
• Trace metadata shows user_id: tutorial-reader and session_id: demo-session-1; under Tracing → Sessions, demo-session-1 groups this run (re-run the script and both traces appear in the session).

If all three hold, every hop of the pipeline is now queryable — you can filter traces by session, sort by cost, and drill into any slow or expensive generation.

Troubleshooting

• auth_check() fails (or the script exits with "Langfuse rejected credentials") — nine times out of ten the keys are fine and LANGFUSE_BASE_URL points at the wrong region: US-region keys against https://cloud.langfuse.com (the EU default) return 401. Match the URL to where you created the project. Set LANGFUSE_DEBUG=True to see the failing request.
• Script succeeds but no trace appears in the UI — the process exited before the background exporter drained its buffer. Ensure langfuse.flush() (or langfuse.shutdown()) runs at the end of the script, including on exception paths; in serverless handlers, flush inside the handler before returning.
• anthropic.AuthenticationError: Error code: 401 ... 'invalid x-api-key' — the Anthropic key is missing, mistyped, or was revoked. Re-export ANTHROPIC_API_KEY; if you use a key manager, confirm the venv shell actually inherits it (echo $ANTHROPIC_API_KEY).
• Generations show token counts but the cost column is blank — the model string on the span didn't match any Langfuse model definition (common with brand-new or fine-tuned models). Add one under Project Settings → Models with a regex match pattern and per-token prices; custom definitions override built-ins and apply to new traces immediately.

Next steps

• Add scores to traces (user feedback, LLM-as-a-judge) so you can correlate quality with cost per agent.
• Instrument other layers of the stack — any OTel library (HTTP clients, databases, other LLM SDKs) drops its spans into the same trace; see Langfuse's OpenTelemetry docs for the attribute mapping and the OTLP endpoint if you'd rather bring your own collector.
• Use langfuse.start_as_current_observation(as_type="generation", ...) for manual control when auto-instrumentation doesn't fit — for example, custom retry loops or providers without an instrumentor.
• Wire the same env vars into CI and production; traces are cheap enough to leave on everywhere, and the session/user attributes you propagated make per-tenant cost accounting a saved table view.
